LiveON TechnologyFlagship Product
LiveON 5 MWh Containerized BESS
Standalone, grid-scale battery energy storage — engineered for utility deployments.
Overview

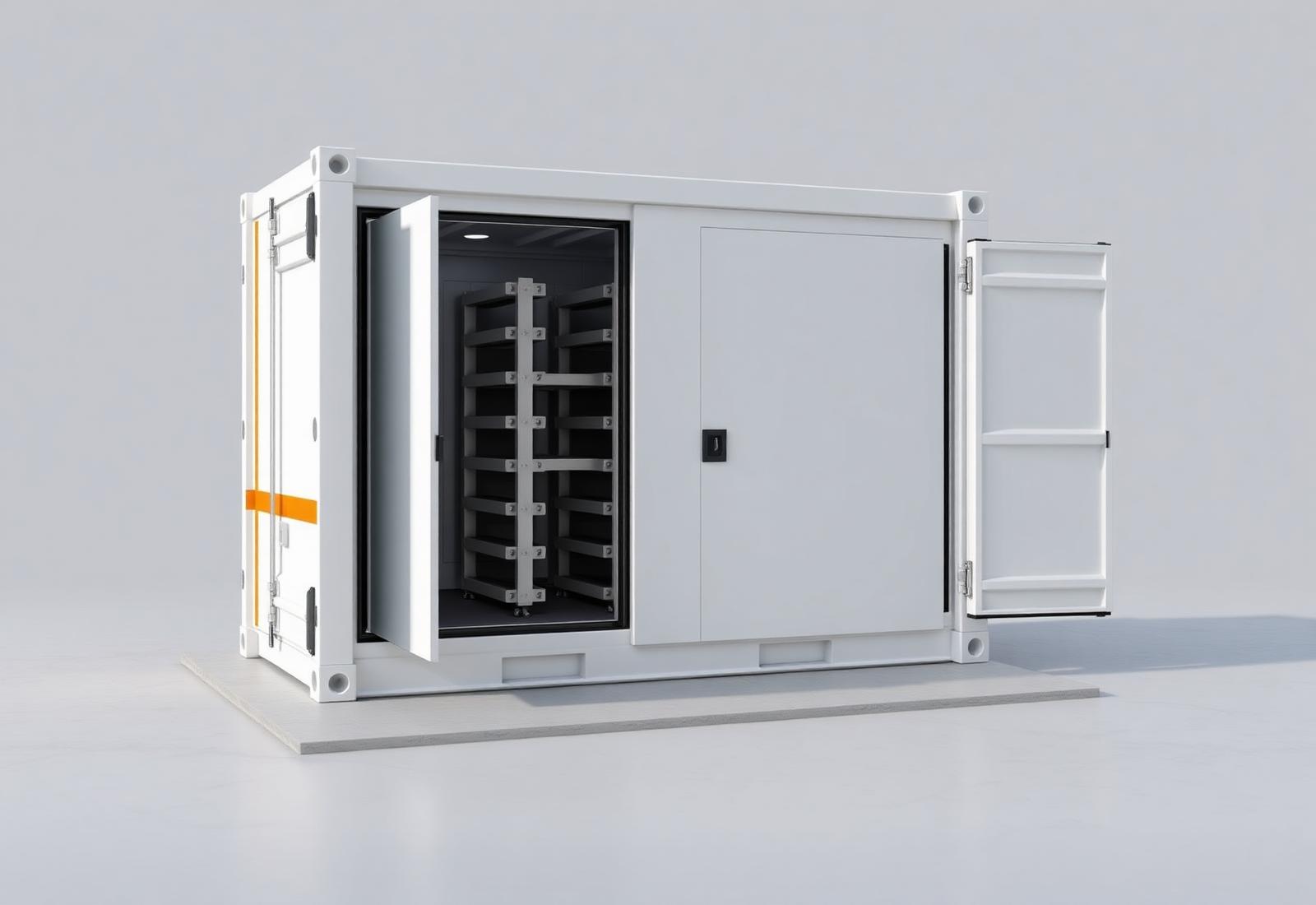

A grid-scale storage block, delivered as a container.
Every LiveON BESS container is a fully integrated 5 MWh / 2.5 MW energy block — long-life LFP cells, intelligent BMS, liquid cooling, fire safety, and a factory-tested EMS interface — ready to combine into utility-scale clusters.
- Standardized 20-ft ISO containerized architecture for rapid deployment
- Long-life LFP prismatic cells with > 8,000 cycles at 70% DoD
- Integrated BMS, PCS, HVAC, fire suppression and EMS
- Compliant with GB/T, IEC 62619, UL 9540 / 9540A safety frameworks
- Cluster-scalable: 4 battery containers + 1 PCS/EMS container = 20 MWh / 10 MW block
- Supplied EXW-Chennai with commissioning and O&M support
5 MWh
Rated Energy
2.5 MW
Rated Power
0.5 C
C-Rate
LFP (LiFePO₄)
Chemistry
314 Ah
Cell Capacity
> 8,000
Cycle Life
Cluster Architecture
Scale from 5 MWh to gigawatt-hour projects.
Four battery containers plus one PCS/EMS container form a standardized 20 MWh / 10 MW block — the unit of scale behind our utility-grade deployments.
5 MWh
Battery Container
2.5 MW LFP block with integrated BMS, HVAC and fire safety.
20 MWh
Cluster Block
4 × battery containers + 1 × PCS/EMS container = 10 MW AC output.
GWh
Project Scale
Cluster blocks combine into hundreds of MWh to multi-GWh utility programs.
Technical Specifications
Engineered for utility deployment.
Battery Container
- Rated Energy
- 5,016 kWh (5 MWh)
- Rated Power
- 2,500 kW (2.5 MW)
- C-Rate
- 0.5 C (charge / discharge)
- Cell Chemistry
- LFP prismatic, 314 Ah
- System Voltage
- 1,331.2 V DC (nominal)
- Cycle Life
- > 8,000 cycles @ 70% DoD
- Round-Trip Efficiency
- ≥ 90% (DC side)
- Enclosure
- 20-ft ISO container, IP54
- Cooling
- Liquid cooling with redundant HVAC
- Fire Safety
- Multi-stage detection + aerosol / gas suppression
Power Conversion System (PCS)
- Rated AC Power
- 2.5 MW per unit (10 MW / cluster)
- Grid Voltage
- Configurable — LV / MV transformer options
- Topology
- String / centralized PCS with active-reactive control
- Grid Support
- P-Q, LVRT/HVRT, frequency regulation
Cluster Block (20 MWh / 10 MW)
- Battery Containers
- 4 × 5 MWh
- PCS / EMS Container
- 1 × 10 MW
- Total Energy
- 20 MWh
- Total Power
- 10 MW
- Footprint
- Fully containerized, foundation-ready
Compliance & Standards
- Safety
- UL 9540, UL 9540A, IEC 62619, IEC 62933
- EMC
- IEC 61000 series
- Grid Code
- Project-specific (India CEA, IEEE 1547 compatible)
- Transport
- ISO container, road / rail / sea shippable
Applications
Built for the grid, ready for the field.
- Standalone utility BESS (e.g. GUVNL Phase-VII class programs)
- Renewable firming for solar and wind plants
- Peak shaving and load shifting for C&I customers
- Frequency regulation and ancillary grid services
- Microgrids and remote / island power systems

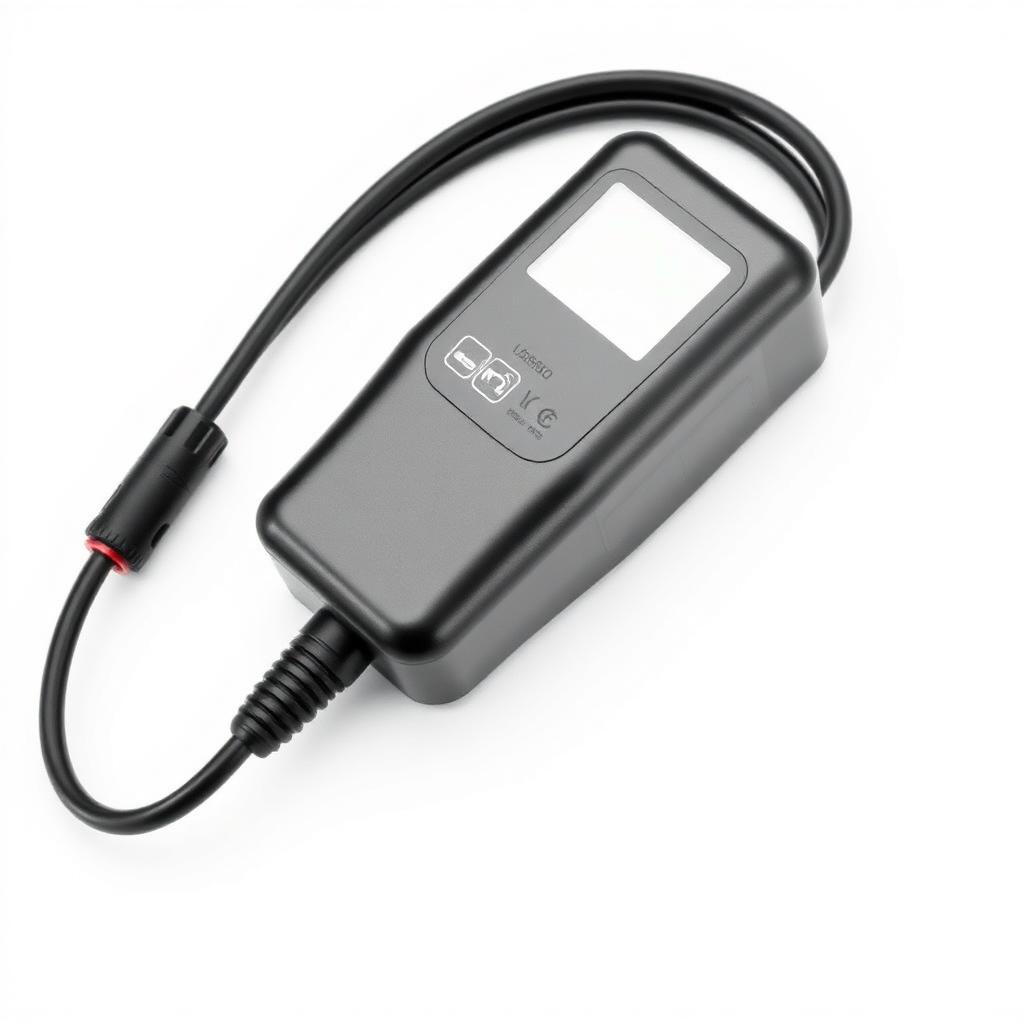

EV Charger Portfolio
Product Categories
Smart, safe, thermally-managed chargers for electric scooters, bikes and e-rickshaws — engineered across the full 48V–60V voltage range with every popular connector option.
E-Scooty & Bike
48V / 7A / 54.6V — All Connectors
Smart chargers for 48V lithium scooter and bike packs with 54.6V float voltage.
E-Scooty & Bike
48V / 7A / 58.4V — All Connectors
48V LFP-compatible chargers delivering 58.4V CV output across all connector types.
E-Scooty & Bike
60V / 6A / 67.2V — All Connectors
60V lithium-ion chargers with 67.2V CV, thermal cutoff and reverse polarity protection.
E-Scooty & Bike
60V / 6A / 69.3V — All Connectors
Long-life 60V chargers optimized for 69.3V LFP battery packs.
E-Scooty & Bike
60V / 6A / 71.2V — All Connectors
High-CV 60V chargers with intelligent current tapering and battery health analysis.
E-Scooty & Bike
60V / 6A / 73V — All Connectors
Premium 60V/73V chargers with over-voltage, short-circuit and thermal safeguards.
Our Products
Fast Chargers for E-Scooty & Bike
Discover our range of advanced EV charging solutions — every unit tested for over-voltage, short-circuit and thermal safety.
Fast Charger
Fast Charger
Fast Charger
48V / 10A / 58.4V — Okinawa Chagori Connector
48V
Input
10A
Current
58.4V
Output
Fast Charger
48V / 10A / 58.4V — Kinetic Chagori Connector
48V
Input
10A
Current
58.4V
Output
Fast Charger
Fast Charger
Fast Charger
Fast Charger
Fast Charger
60V / 10A / 67.2V — Okinawa Chagori Connector
60V
Input
10A
Current
67.2V
Output
Fast Charger
60V / 10A / 67.2V — Kinetic Chagori Connector
60V
Input
10A
Current
67.2V
Output
Fast Charger
Fast Charger
Fast Charger
Fast Charger
Fast Charger
Fast Charger
60V / 10A / 69.3V — Okinawa Chagori Connector
60V
Input
10A
Current
69.3V
Output
Fast Charger
60V / 10A / 69.3V — Kinetic Chagori Connector
60V
Input
10A
Current
69.3V
Output
Planning a utility-scale storage project?
From 20 MWh pilots to multi-GWh utility programs — talk to our BESS team about supply, integration and commissioning timelines.
